Project #2: An Image Processing System

Due: Thursday, May 19th at 11:59pm

This project is intended to provide you with exposure with using CSP style programming (i.e., channels) in Golang. You will also look at implementing more advance work distribution techniques in this assignment as well.

Getting started

For each assignment, a Git repository will be created for you on GitHub. However, before that repository can be created for you, you need to have a GitHub account. If you do not yet have one, you can get an account here: https://github.com/join.

To actually get your private repository, you will need this invitation URL:

• `Project 2 invitation (See Ed Post) <>`__

When you click on an invitation URL, you will have to complete the following steps:

1. You will need to select your CNetID from a list. This will allow us to know what student is associated with each GitHub account. This step is only done for the very first invitation you accept.

Note

If you are on the waiting list for this course you will not have a repository made for you until you are admitted into the course. I will post the starter code on Ed so you can work on the assignment until you are admitted into the course.

2. You must click “Accept this assignment” or your repository will not actually be created.

3. After accepting the assignment, Github will take a few minutes to create your repository. You should receive an email from Github when your repository is ready. Normally, it’s ready within seconds and you can just refresh the page.

4. You now need to clone your repository (i.e., download it to your machine).

   • Make sure you’ve set up SSH access on your GitHub account.

   • For each repository, you will need to get the SSH URL of the repository. To get this URL, log into GitHub and navigate to your project repository (take into account that you will have a different repository per project). Then, click on the green “Code” button, and make sure the “SSH” tab is selected. Your repository URL should look something like this: git@github.com:mpcs52060-spr22/proj2-GITHUB-USERNAME.git.

   • If you do not know how to use git clone to clone your repository then follow this guide that Github provides: Cloning a Repository

If you run into any issues, or need us to make any manual adjustments to your registration, please let us know via Ed Discussion.

Preliminaries

As I talked about in class, many algorithms in image processing benefit from parallelization. In this assignment, you will create an image processing system that reads in a series of images and applies certain effects to them using image convolution. If you are unfamiliar with image convolution then you should read over the following sources before beginning the assignment:

• Two Dimensional Convolution

• Image Processing using Convolution

Assignment: Image Processing System

For this assignment, you will create image editor that will apply image effects on series of images using 2D image convolution. Please make sure to read over the articles presented in the Preliminaries section before beginning the assignment. Similar to project #1, The program will read in from a series of JSON strings, where each string represents an image along with the effects that should be applied to that image. Each string will have the following format,

{
  "inPath": string,
  "outPath": string,
  "effects": [string]
}

For example, processing an image of a sky may have the following JSON string,

{
  "inPath": "sky.png",
  "outPath": "sky_out.png",
  "effects": ["S","B","E"]
}

where each key-value is described in the table below,

Key-Value	Description
"inPath":"sky.png"	The "inPath" pairing represents the file path of the image to read in. Images in this assignment will always be PNG files. All images are relative to the data directory inside the proj2 folder.
"outPath:":"sky_out.png"	The "outPath" pairing represents the file path to save the image after applying the effects. All images are relative to the data directory inside the proj2 folder.
"effects":["S","B","E"]	The "effects" pairing represents the image effects to apply to the image. You must apply these in the order they are listed. If no effects are specified (e.g., []) then the out image is the same as the input image.

The program will read in the images, apply the effects associated with an image, and save the images to their specified output file paths. How the program processes this file is described in the Program Specifications section.

Image Effects

The sharpen, edge-detection, and blur image effects are required to use image convolution to apply their effects to the input image. Again, you can read about how to perform image convolution here:

• Two Dimensional Convolution

As stated in the above article, the size of the input and output image are fixed (i.e., they are the same). Thus, results around the border pixels will not be fully accurate because you will need to pad zeros where inputs are not defined. You are required to use the a zero-padding when working with pixels that are not defined. You may not use a library or external source to perform the convolution for you. You must implement the convolution code yourself. The grayscale effect uses a simple algorithm defined below that does not require convolution.

Each effect is identified by a single character that is described below,

Image Effect	Description
"S"	Performs a sharpen effect with the following kernel (provided as a flat go array): [9]float6 {0,-1,0,-1,5,-1,0,-1,0}.
"E"	Performs an edge detection effect with the following kernel (provided as a flat go array): [9]float64{-1,-1,-1,-1,8,-1,-1,-1,-1}.
"B"	Performs a blur effect with the following kernel (provided as a flat go array): [9]float64{1 / 9.0, 1 / 9, 1 / 9.0, 1 / 9.0, 1 / 9.0, 1 / 9.0, 1 / 9.0, 1 / 9.0, 1 / 9.0}.
"G"	Performs a grayscale effect on the image. This is done by averaging the values of all three color numbers for a pixel, the red, green and blue, and then replacing them all by that average. So if the three colors were 25, 75 and 250, the average would be 116, and all three numbers would become 116.

The data Directory

Inside the proj2 directory, You will need to download the data directory here:

• Proj 2 Data : There should be a download arrow icon on the left side to download the zip folder.

Place this directory inside the proj2 directory that contains the subdirectories: editor and png. DO NOT COMMIT THIS DIRECTORY TO YOUR REPOSITORY. These are very large files and committing this directory will result in a penalty!

Here is the structure of the data directory:

Directory/Files	Description
effects.txt	This is the file that contains the string of JSONS that were described above. This will be the only file used for this program (and also for testing purposes). You must use a relative path to your proj2 directory to open this file. For example, if you open this file from the editor.go file then you should open as ../data/effects.txt.
expected directory	This directory contains the expected filtered out image for each JSON string provided in the effects.txt. We will only test your program against the images provided in this directory. Your produced images do not need to look 100% like the provided output. If there are some slight differences based on rounding-error then that’s fine for full credit.
in directory	This directory contains three subdirectories called: big, mixture, and small. The actual images in each of these subdirectories are all the same, with the exception of their image sizes. The big directory has the best resolution of the images, small has a reduced resolution of the images, and the mixture directory has a mixture of both big and small sizes for different images. You must use a relative path to your proj2 directory to open this file. For example, if you want to open the IMG_2029.png from the big directory from inside the editor.go file then you should open as ../data/in/big/IMG_2029.png.
out directory	This is where you will place the outPath images when running the program.

Working with Images in Go and Startup Code

As part of the Go standard library, an image package is provided that makes it easy to load,read,and save PNG images. I recommend looking at the examples from these links:

• Go PNG docs

• A helpful tutorial for working on png images. Make sure to cite this website, if you are going to use a similar structure to the code provided. The developer directly accesses the Pix buffer. I would recommend you use the At() and Set() methods as specified by the Go PNG documentation.

Note

The image package only allows you to read an image data and not modify it in-place. You will need to create a separate out buffer to represent the modified pixels. We have done this for you already in the Image struct as follows:

type Image struct {
  in  *image.RGBA64  // Think about swapping these between effects
  out *image.RGBA64  // Think about swapping these between effects
  Bounds  image.Rectangle
  ...
}

You may want to rename this to ImageTask since you’ll be using that name later on in your parallel implementation. Remember these are pointers so you only need to swap the pointers to make the old out buffer the new in buffer when applying one effect after another effect. This process is less expensive than copying pixel data after apply each effect.

To help you get started, I provide code for loading, saving, performing the grayscale effect on a png image. You are not required to use this code and you can modify it as you wish. This code is already inside the proj2/sample/sample.go directory. You can run this sample program by going into the ``proj2/sample `` directory typing in the following command:

$: go run sample.go test_img.png

Program Specifications

For this project, You will implement three versions of this image processing system. The versions will include a sequential version and two parallel versions.

The running of these various versions have already been setup for you inside the proj2/editor/editor.go file. The program has the following usage statement:

Usage: editor data_dir [mode] [number_of_threads]
data_dir = The data directories to use to load the images.
mode     = (bsp) run the BSP mode, (pipeline) run the pipeline mode
number_of_threads = Runs the parallel version of the program with the specified number of threads (i.e., goroutines).

The data_dir argument will always be either big, small, or mixture or a combination between them. The program will always read from the data/effects.txt file; however, the data_dir argument specifies which directory to use. The user can also add a + to perform the effects on multiple directories. For example, big will apply the effects.txt file on the images coming from the big directory. The argument big+small will apply the effects.txt file on both the big and small directory. The program must always prepend the data_dir identifier to the beginning of the outPath. For example, running the program as follows:

$: go run editor.go big bsp 4

will produce inside the out directory the following files:


Here’s an example of a combination run:

$: go run editor.go big+small pipeline 2

will produce inside the out directory the following files:


We will always provide valid command line arguments so you will only be given at most 3 specified identifiers for the data_dir argument. A single + will always be used to separate the identifiers with no whitespace.

The mode and number_of_threads arguments will be used to run one of the parallel versions. Parts 2 and 3 will discuss these arguments in more detail. If the mode and number_of_threads arguments are not provided then the program will default to running the sequential version, which is discussed in Part 1.

The scheduling (i.e., running) of the various implementations is handled by the scheduler package defined in proj2/scheduler directory. The editor.go program will create a configuration object (similar to project 1) using the following struct:

type Config struct {
  DataDirs string //Represents the data directories to use to load the images.
  Mode     string // Represents which scheduler scheme to use
  // If Mode == "s" run the sequential version
  // If Mode == "pipeline" run the pipeline version
  // If Mode == "bsp" run the pipeline version
  // These are the only values for Version
  ThreadCount int // Runs the parallel version of the program with the
  // specified number of threads (i.e., goroutines)
}

The Schedule function inside the proj2/scheduler/scheduler.go file will then call the correct version to run based on the Mode field of the configuration value. Each of the functions to begin running the various implementation will be explained in the following sections. You cannot modify any of the code in the ``proj2/scheduler/scheduler.go`` or ``proj2/editor/editor.go`` file.

Addtional Assumptions: No error checking is needed to be done to the strings coming in from effects.txt. You can assume the JSON strings will contain valid values and provided in the format described above. We will always provide the correct command line arguments and in the correct order. The expected directory in proj2/data is based on only running the small dataset. Thus, the resolution for mixture and big modes will make the images appear slightly different. This is okay for this assignment. We will always run/grade your solutions by going inside the proj2/editor directory so loading in files should be relative to that directory.

Part 1: Sequential Implementation

Inside the proj2/scheduler/sequential.go file, implement the function:

func RunSequential(config Config) {

}

The sequential version is ran by default when executing the editor program when the mode and number_of_threads are both not provided. The sequential program is relatively straightforward. This version should run through the images specified by the strings coming in from effects.txt, apply their effects and save the modified images to their output files inside the data/out directory. Make sure to prepend the data_dir identifier.

Note

You should implement the sequential version first. Make sure your code is modular enough such that you can potentially reuse functions/data structures later in your parallel version. Think about what libraries should be created (e.g., feed and lock libraries you created for project 1). We will be looking at code and design style more closely when grading this assignment.

You may find this code useful:

effectsPathFile := fmt.Sprintf("../data/effects.txt")
effectsFile, _ := os.Open(effectsPathFile)
reader := json.NewDecoder(effectsFile)

Part 2: Fan-Out Implementation

The first parallel implementation will use channels and must be implemented as follows:

1. For this version, all synchronization between the goroutines must be done using channels. You cannot use anything from the ``sync`` package for this implementation that includes the ``sync.Waitgroup`` object. You’ll need to think about how to implement a ``sync.Waitgroup``object using channels.

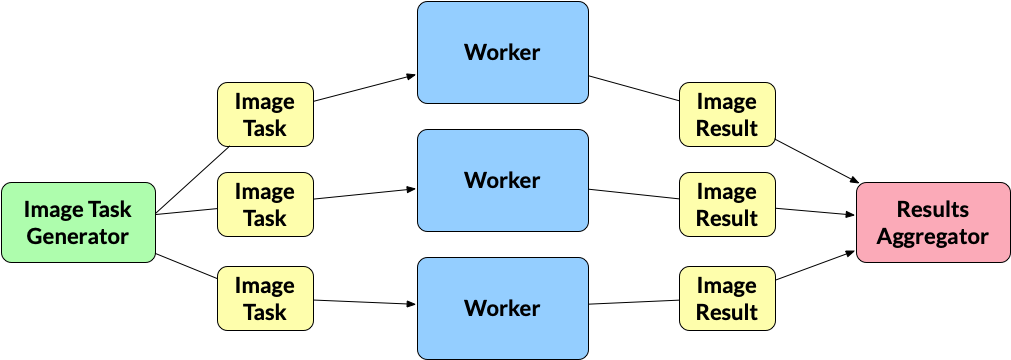

2. You must implement the following fan-in/fan-out scheme:



   • Image Task Generator: As stated earlier, the program will read in the images to process via effects.txt. Reading is done by a single generator goroutine. The image task generator will read in the JSON strings and do any preparation needed before applying their effects. What “preparation” means is dependent on your implementation and how you plan to pass the images to the worker goroutines (described below), which handle the filtering. The output from this goroutine will be an ImageTask value. How you define the ImageTask struct is up to you. The image task generator will write each ImageTask to a channel and multiple workers will read from it.

   • ImageTask: A value that holds everything needed to do filtering for a specific JSON string. Again, its up to you how you define the ImageTask struct.

   • Workers: The workers are the goroutines that are performing the filtering effects on the images. The number of workers is static and is equal to the number_of_threads command line argument. A worker must use a pipeline pattern. The pattern must model the pipeline implemented in m6/discussion/patterns/fan-out-fan-in/fig-fan-out-naive-prime-finder.go. You must determine how to reshape the code provided in that file into the pipeline you are building in this project. Each Worker of the pipeline, must have an internal data decomposition component, which must do the following:

     • Spawn N number of goroutines, where N = number_of_threads. We will call these “mini-workers”.

     • Each mini-worker goroutine is given a section of the image to work on.

     • Each mini-worker goroutine will apply the effect for that stage to its assigned section.

     • You should give approximately equal portions to all mini-workers.

     Visually the splitting could look something like this if number_of_threads=6:



     This means that if there will be a total of 6 Workers with each having 6 mini-workers running, which totals to 36 “worker” goroutines running in parallel. One question you may have is “should the worker be spawning N new mini-workers for each effect, or should it spawn N new mini-workers once when it gets an image and reuse those same goroutines at each stage of the pipeline for that image?” You can do either in this specific case. However, I recommend that you spawn new ones because it’s easier to manage.

     The output of a worker is an ImageResult. This can be same as an ImageTask. There is no need to create a a new struct that represents the final image after applying its effects. However, you can define a new ImageResult struct that holds that final image. Each worker writes its ImageResult to a channel that is read by a Results Aggregator gorountine (described below).

   • ImageResult: the final image after applying its effects. Again you do not need to define a new ImageResult struct but instead can reuse the same ImageTask struct.

   • Results Aggregator: The results aggregator gorountine reads from the channel that holds the ImageResults and saves the filtered image to its "outPath" file. Make sure to prepend the data_dir identifier.

3. If all the images have been processed then the main goroutine can exit the program. You cannot make the main goroutine handle the Image Task Generator and/or the Results Aggregator.

4. The mode command line argument value for executing this version is "pipeline".

Another way of stating the above breakdown is the following:

• X images to process

• P number of threads (which is supplied by the number_of_threads flag)

• N workers (N = P)

1. ImageTaskGenerator produces X ImageTasks and dumps them all into a channel.

2. A worker w1 tries to grab a single ImageTask x1 from the channel. This worker is SOLELY responsible for performing all E effects for this one image.

3. The worker w1 splits up this single ImageTask x1 into P roughly equal portions and spawns P goroutines to apply effect e1 to the image. Once all goroutines have applied effect e1, they can begin applying e2, e3, … , until all E effects have been applied in order.

4. Meanwhile, other workers w2, w3, … all the way up to N are concurrently grabbing images of their own, and performing step (3) on their own images.

5. If X > N, then a worker w will go back up to step (2), grab another ImageTask x, and perform step (3) on it. We repeat this process until all X images have been processed.

In the proj2/scheduler/pipeline..go file, implement this pipeline algorithm inside the function:

func RunPipeline(config Config) {

}

Make sure to make to think about your function decomposition and not define everything inside RunPipeline function.

Part 3: BSP Implementation

In the second parallel implementation, you must implement the bulk synchronous parallel (BSP) model technique as follows:

1. For this version, all synchronization between the goroutines must be done using only the sync package (i.e, only using mutexes,condition variables, or atomics). Channels cannot be used for this implementation. You cannot use ``sync.Waitgroup`` anywhere in this implementation.

2. The Schedule function inside the proj2/scheduler/scheduler.go file includes the following code for the BSP implementation,

   ctx := NewBSPContext(config)
   var idx int
   for idx = 0; idx < config.ThreadCount-1; idx++ {
     go RunBSPWorker(idx, ctx)
   }
   RunBSPWorker(idx, ctx)


   The scheduler first calls the NewBSPContext constructor function to create and initialize the worker context for the goroutines that will be part of the super-steps for the BSP model. Inside the proj2/scheduler/bsp.go file, you will need to define and implement the following:

   type bspWorkerContext struct {
       // Define the necessary fields for your implementation
   }

   func NewBSPContext(config Config) *bspWorkerContext {
       //Initialize the context
       return nil
   }


   You can decide what to define in this specific context and what needs to be initialized in this function. Make sure to include copy over any data from the Config argument into the context that you will need when running the model.

   After initializing the context, the Schedule function will spawn off config.ThreadCount-1 goroutines upfront to run RunBSPWorker that will run the entire BSP model for all images. Inside the proj2/scheduler/bsp.go file, you need to implement the RunBSPWorker function:

   func RunBSPWorker(id int, ctx *bspWorkerContext) {
       for {
           // Implement the BSP model here.
           // No additional loops can be used in this implementation. T
           // This goes to calling other functions. No other called
           // function you define or are using can have looping being done for you.
           break
       }
   }


   Inside the RunBSPWorker, you need to think about what should be done at each super-step and global synchronization point inside. You can only use a single infinite for-loop as shown above. No other function call can do any additional iteration for you. How you decompose the work at each super-step and synchronization point is up to you to decide. You have more freedom to express your parallel programming abilities in this one so really think about the parallel decomposition. The main goroutine is one of the goroutines in the BSP model but the Schedule handles this requirement for you. All spawned goroutines must be doing an equal amount of work during a super-step and can only be idle after their work is complete. Once all the images have been completed then the goroutines should break from the loop and exit.

3. If all the images have been processed then the main goroutine can exit the program.

How you read in the images, process the images in the super-step/synchronization point, and save the image is for you to determine. I would sit down first and map out the design before coding anything for this version. If you are unsure about the requirements then ask on Ed before implementing it.

Part 4: Performance Measurements and Speedup Graphs

You will run timing measurements on both the sequential and parallel versions of the editor.go program. The data directory will be used to measure the performance of the parallel versions versus the sequential version. We will keep things simple and only look at measuring single data directories: small, mixture, and big. The measurements gathered will be used to create speedup graphs (similar to project 1). Each speedup graph is based around a single parallel version (e.g., pipeline) where each line represents running a specific data directory. The set of threads will be {2,4,6,8,12} and will remain the same for all speedup graphs. Here is the breakdown for producing the speedup graphs:

1. You will have a total of 2 speedup graphs for parallel versions: bsp, and pipeline.

2. Each line in the graph represents a data directory size (i.e., small, mixture, and big) that you will run for each thread number in the set of threads (i.e., {2,4,6,8,12}).

   Similar to project 1, you must run each line execution 5 times in a row. We have made the editor.go program print the executing time for running the program. For example, running the small line for bsp with threads == 2 based on my implementation is as follows:

   $ go run proj2/editor small bsp 2
   4.33
   $ go run proj2/editor small bsp 2
   4.35
   $ go run proj2/editor small bsp 2
   4.27
   $ go run proj2/editor small bsp 2
   4.30
   $ go run proj2/editor small bsp 2
   4.29


   and use the average time (4.31) to use for the speedup calculation, which again is

   \[Speedup = \frac{\text{wall-clock time of serial execution}}{\text{wall-clock time of parallel execution}}\]

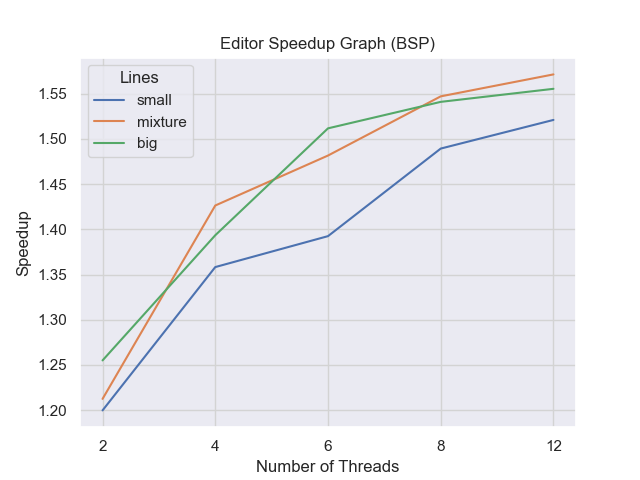

   Here’s my bsp speedup graph that I ran on my local machine:



   Your graph may look vastly different from mine and that’s okay!. It’s fine if the lines vary from thread to thread or look odd. However, to receive an “A” range grade most of the lines must have speedups (see Performance Grade* section below). You will analyze these graphs in the next part.

3. The names for each graph file will be the name of the parallel versions (i.e., speedup-bsp.png and speedup-pipeline.png)

4. For each speedup graph, the y-axis will list the speedup measurement and the x-axis will list the number of threads. Similar to the graph shown below. Make make sure to title the graph, and label each axis. Make sure to adjust your y-axis range so that we can accurately see the values. That is, if most of your values fall between a range of [0,1] then don’t make your speedup range [0,14].

5. You must write a script that produces both graphs on the debug Peanut cluster. Use the original benchmark-proj`1.sh file as your template but name the actual slurm file for homework 5, benchmark-proj2.sh and keep the configuration settings the same except for choosing the debug partition.

6. All your work for this section must be placed in the benchmark directory along with the generated speedup graphs. You will need to create the benchmark directory. Do not forget to git add/commit this directory.

Note

You do not have to use the elapsed time provided by the editor.go program. You can still use time or if you are using Python some other mechanism such as timeit. You must be consistent with your choice of a timing mechanism. This means you cannot use the elapsed time from the editor.go program for one sample run and then other timing mechanism for other sample runs. This is not a stable timing environment so you must stick with the same mechanism for producing all graphs.

Part 5: Performance Analysis

Please submit a report (pdf document, text file, etc.) summarizing your results from the experiments and the conclusions you draw from them. Your report should also include the graphs as specified above and an analysis of the graphs. That is, somebody should be able to read the report alone and understand what code you developed, what experiments you ran and how the data supports the conclusions you draw. The report must also include the following:

• A brief description of the project. A paragraph or two recap will suffice.

• Instructions on how to run your testing script. We should be able to just say sbatch benchmark-proj2.sh; however, if we need to do another step then please let us know in the report.

• As stated previously, you need to explain the results of your graph. Based on your implementation why are you getting those results? Answers the following questions:

  • What are the hotspots and bottlenecks in your sequential program?

  • Which parallel implementation is performing better? Why do you think it is?

  • Does the problem size (i.e., the data size) affect performance?

  • The Go runtime scheduler uses an N:M scheduler. However, how would the performance measurements be different if it used a 1:1 or N:1 scheduler?

• Based on the topics we discussed in class, identify the areas in your implementation that could hypothetically see increases in performance (if any). Explain why you would see those increases.

• Do not just restate what the graph is showing. For example,

  “We can see that for the bsp implementation there is no speedup when using the small directory and threads is equal to 2.”

  Yes that’s obvious from the looking at the graph but make sure you analyze why that is happening. Do not just state the obvious because we can see the graph. We want you to go deeper to try to explain the reasoning why there’s no speedup.

Grading

Programming assignments will be graded according to a general rubric. Specifically, we will assign points for completeness, correctness, design, and style. (For more details on the categories, see our Assignment Rubric page.)

The exact weights for each category will vary from one assignment to another. For this assignment, the weights will be:

• Sequential Version 15%

• Pipeline Version: 25%

• BSP Version: 25%

• Design & Style: 10%

• Performance: 10%

• Analysis Report: 15%

There are no automated tests for this assignment. We will manually run your programs to verify visually with comparing your results to the expected output directory. You will be provided with partial credit if your program is not deterministic.

Performance Grade

An “A” range grade for this project requires a high performing solution; therefore, the breakdown for performance will be calculated as follows:

1. 10 pts - Always produces deterministic results and all lines have speedups.

2. 3 pts - Always produces deterministic results and some lines have speedups.

3. 0 pts - Produces nondeterministic results.

Execution time is not being graded for this assignment. As long as your code is deterministic and you program produces speedups.

Design, Style and Cleaning up

Before you submit your final solution, you should, remove

• any Printf statements that you added for debugging purposes and

• all in-line comments of the form: “YOUR CODE HERE” and “TODO …”

• Think about your function decomposition. No code duplication. This homework assignment is relatively small so this shouldn’t be a major problem but could be in certain problems.

Go does not have a strict style guide. However, use your best judgment from prior programming experience about style. Did you use good variable names? Do you have any lines that are too long, etc.

As you clean up, you should periodically save your file and run your code through the tests to make sure that you have not broken it in the process.

Submission

Before submitting, make sure you’ve added, committed, and pushed all your code to GitHub. You must submit your final work through Gradescope (linked from our Canvas site) in the “Project #2” assignment page via two ways,

1. Uploading from Github directly (recommended way): You can link your Github account to your Gradescope account and upload the correct repository based on the homework assignment. When you submit your homework, a pop window will appear. Click on “Github” and then “Connect to Github” to connect your Github account to Gradescope. Once you connect (you will only need to do this once), then you can select the repository you wish to upload and the branch (which should always be “main” or “master”) for this course.

2. Uploading via a Zip file: You can also upload a zip file of the homework directory. Please make sure you upload the entire directory and keep the initial structure the same as the starter code; otherwise, you run the risk of not passing the automated tests.

As a reminder, for this assignment, there will be no autograder on Gradescope. We will run the program the CS Peanut cluster and manually enter in the grading into Gradescope. However, you must still submit your final commit to Gradescope.
