Homework #1¶

Due: Thursday, April 7th at 11:59pm

This homework is intended to serve as an introduction to the Go programming language. This assignment is not meant to cover the entire language. It solely serves as a way for you to get familiar with the Go syntax and the structure of Go programs.

Note

If you were in enrolled in my compilers course class then some of the problems from homework 1 are similar/same. You may use the same solution for your prior solution for only this homework assignment. If you have any concerns than reach out to me on Ed privately.

Please make sure to use the “Go by Example” and standard library websites:

Additionally, refer back to the module 1 slides that indicate the specific “Go by Example” pages you should read over. Please make sure you understand those pages before beginning your homework assignment.

Getting started¶

For each assignment, a Git repository will be created for you on GitHub. However, before that repository can be created for you, you need to have a GitHub account. If you do not yet have one, you can get an account here: https://github.com/join.

To actually get your private repository, you will need this invitation URL:

HW1 invitation (Posted on Ed)

When you click on an invitation URL, you will have to complete the following steps:

You will need to select your CNetID from a list. This will allow us to know what student is associated with each GitHub account. This step is only done for the very first invitation you accept.

Note

If you are on the waiting list for this course you will not have a repository made for you until you are admitted into the course. I will post the starter code on Ed so you can work on the assignment until you are admitted into the course.

You must click “Accept this assignment” or your repository will not actually be created.
After accepting the assignment, Github will take a few minutes to create your repository. You should receive an email from Github when your repository is ready. Normally, it’s ready within seconds and you can just refresh the page.
You now need to clone your repository (i.e., download it to your machine).
- Make sure you’ve set up SSH access on your GitHub account.
- For each repository, you will need to get the SSH URL of the repository. To get this URL, log into GitHub and navigate to your project repository (take into account that you will have a different repository per project). Then, click on the green “Code” button, and make sure the “SSH” tab is selected. Your repository URL should look something like this: git@github.com:mpcs52060-spr22/hw1-GITHUB-USERNAME.git.
- If you do not know how to use git clone to clone your repository then follow this guide that Github provides: Cloning a Repository

If you run into any issues, or need us to make any manual adjustments to your registration, please let us know via Ed Discussion.

Utils Package¶

Place any code that will be shared between the problems within this homework assignment inside the utils/utils.go file. It is not required to have anything inside of this file. Only place code inside this file if there are functions that can be used in different problems. There is a Contains function already defined in this file. Please keep this function there.

Running Tests¶

Each problem in this assignment (and future assignments) will include a series of test cases. You can run all the tests cases by using go test. For example, if you wanted to run all test cases for problem1 then go inside the problem1 directory (i.e., cd problem1) and execute the following command:

go test -v

The -v runs the tests in verbose mode so you can more clearly see the tests you pass and fail.

Many of the tests are ran in a single function that use a table to indicate the inputs and expected outputs for a single test. For example, the table for problem1 looks like this:

func TestExpand(t *testing.T) {

      var tests = []struct {
              input    string
              expected []int
      }{
              {"", []int{}},
              {"2", []int{2}},
              {"1,2,3,3,3,3-4", []int{1, 2, 3, 4}},
              {"1-2,1-2,1-2,3,3,3,3-4,1-2,1-2,3-4", []int{1, 2, 3, 4}},
              {"Invalid,3,4", []int{3, 4}},
              {"4 43, 4,", []int{4}},
              {"1-4,7,3-5,10,12-14", []int{1, 2, 3, 4, 5, 7, 10, 12, 13, 14}},
              {"1-4, 4  , 5-6  , 5", []int{1, 2, 3, 4, 5, 6}},
              {"            1-4", []int{1, 2, 3, 4}},
              {"1-", []int{}},
              {"1-,45,-4,1-2", []int{45, 1, 2}},
              {"-4,----,4-,25  7, 55     ", []int{55}},
              {"17,1--4,", []int{17}},
              {"19-3,1-,Bob,1-2-3,4,", []int{4}},
              {"3-3,1-,Bob,1-2-3,4-4-4,          ", []int{}},
              {"3    -      4,1-,Bob,1-2-3,4-4-4,          ", []int{}},
      }

What if you wanted to run the fourth test-case (i.e., "1-2,1-2,1-2,3,3,3,3-4,1-2,1-2,3-4")? This test is at index 3 in the table (using zero-indexing) and can be executed as follows:

go test -v -run TestCount/T=3

You need to specify the test function (TestExpand) followed by a / and then T=NUM, where NUM is the index of the test case you want to run. You can use this same format for all table tests.

Problem 1¶

Inside the problem1 directory, open the file called expand.go and implement the following function:

func Expand(intList string) []int

This function takes in a comma-separated list of integers and/or integer ranges, provided by the intList argument and returns a slice of all the integers with the ranges expanded into individual integers. Order does not matter. All the integers included are only positive. You need to exclude duplicates. The components between the commas could contain values that is not a single integer or a range, where a valid range has the format MIN-MAX. MIN and MAX are single positive integers. MAX must be greater than MIN. There cannot be whitespace between the -. If the function encounters an invalid component then it should skip it and continue processing the other components of the list. It is valid for there to be one or more whitespace characters before and after a component.

Sample Example 1:

Expand("1,2,3,3,3,3-4") --> []int{1, 2, 3, 4}

Sample Example 2:

Expand(" 1-4, 4  , 5-6  , 5") --> []int{1, 2, 3, 4, 5, 6}

Sample Example 3:

Expand("4 43, 4,") --> []int{4}

Sample Example 4:

Expand("1-,45,-4,1-2") --> []int{45, 1, 2}

The tests for this file is expand_test.go. Please see the above section for running tests.

Problem 2¶

Inside the problem2 directory, open the file called log.go and implement the following function:

func ProcessLog(log []string, maxDuration int) int

Imagine you are front-desk associate at a luxury condominium, where each day visitors have to sign a log indicating when they came in and out of the building. Futhermore the condominium only allows visitors to stay for a certain amount of time. For this problem, you will find the number of visitors who obeyed the rule and stayed less than or equal to the allowed maximum duration time by looking at the log.

ProcessLog takes in a slice of strings that represent entries into the log. Each log entry (i.e., a single string in the slice) is of the form "visitor_num timestamp action". The values is separated by a single comma. Both visitor_num and timestamp contain digits only, are at most 9 digits long and start with a non-zero digit. The timestamp represents the time in seconds since the start of the day. The action will be either “IN” or “OUT”. The function only looks at entries for visitors who signed in and out. The log entries are no specific order. There could be one or more whitespace characters before or after a comma. The second argument is the maximum duration time allowed for each visitor. This function returns the total number of visitors who stayed less than or equal to the maximum duration time specified.

Sample Example 1:

ProcessLog(["50, 26, OUT"
            "100, 15, OUT"
            "99, 1, IN"
            "50, 20, IN"
            "99, 2, OUT"
            "100, 10, IN"], 5) --> 2

Sample Example 2:

ProcessLog(["60, 12, IN"
            "80, 20, OUT"
            "60, 20, OUT"
            "10, 20, IN"], 100) --> 1

Assumptions: The sign-in timestamp will always be less than the sign out timestamp for each user. Each visitor only visits the condominium only once.

The tests for this problem is inside the log_test.go file. Please see the above section for running tests.

Problem 3¶

Inside the problem3 directory, open the file called nary.go and implement the following function:

SearchTree(edges []string, nAry int) int

For this course, you’ll need to be comfortable working with different tree representations. As a reminder, a tree contains a root value and subtrees of parent-child pairs, for example:

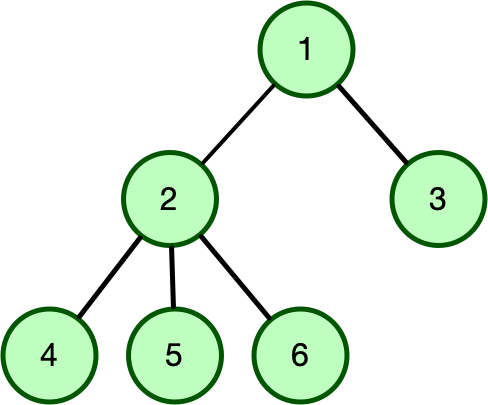

Node 1 is the parent of Node 2 and Node 3. The parent of Node 4, Node 5, and Node 6 is Node 2.

The are many different types of trees (binary trees, binary search trees, AVL trees, etc.). For this problem, we will look at trees that have a specific arity, that is each node can only have a maximum number of children. For example, both a binary tree and binary search tree have an arity of 2 because each node can only have two children. For this problem, you will calculate the number of nodes (including the root node) that have children that are greater than the tree arity. For example, if we specified the above tree has an arity of 1 then there are two nodes that children greater than 1. This is Node 2 and the root node Node 1. If we specified arity to be 3 then no node has children that are greater than 3.

SearchTree takes in two arguments. The first is a slice of strings, where each string corresponds to a parent-child pair. Each of these pairs are two numeric numbers, each separated from the next by a single space, corresponding to edge from the first node to the second node. There is no specific order to the parent-child pair, except that index 0 always represents the root of the tree. There could be one or more whitespace characters before or after a space. The second argument represents the arity of for the tree. This function must return the number of nodes (including the root) that are greater than the arity of the tree. For this problem you will notice the following data structures

// You cannot modify the name of this struct
type Node struct {
      // You may add as many fields to this struct as you wish
}
//You cannot modify this data structure at all (including its types). However
// You are not required to use all of its fields.
type Tree struct {
    root  *Node
    nAry  int
    nodes map[string]*Node
}

You must use both of these data structures as part of your solution to this problem. You are not allowed to modify the Tree data structure. However, you are not required to use all of the fields within the struct. We will let you choose which fields to use. You are allowed to add as many fields as you like to the Node data structure and use them as you wish to solve the problem.

The tests for this problem is inside the nary_test.go file. Please see the above section for running tests.

Problem 4¶

Inside the set/intset.go file, review the struct called IntSet that represents a set of integers:

type IntSet struct {
  intSeq []int // Uses a slice to hold the set of integers. You can change this field to have a different type.
}

You are required to have the following methods associated with the type:

func NewIntSet() *IntSet: This function is already defined for you. It allows you to create and initialize an empty IntSet pointer. Take a close look at & that is needed to return a pointer. You will need to use that in the following methods. We will talk more about this in Week 2.
func (recv *IntSet) Add(num int): This method inserts an integer into the set. Make sure the set does not contain duplicates!
func (recv *IntSet) Union(other *IntSet) *IntSet: This method performs a set union operation on the recv integer set and other integer set and returns the set produced after performing the operation.
func (recv *IntSet) Intersect(other *IntSet) *IntSet: This method performs a set intersect operation on the recv integer set and other integer set and returns the set produced after performing the operation.
func (recv *IntSet) Diff(other *IntSet) *IntSet: This method performs a set relative complement operation on the recv integer set and other (i.e., difference recv - other) integer set and returns the set produced after performing the operation.

You may add additional methods as needed. Remember, a set cannot contain duplicates.

Now, lets write the actual program. Inside the problem4/main.go, write a program that takes in a set argument and file on the command line. The file contains two lines where each line has a series of integers separated by a space. Each line represents an integer set. Your program is required read in those lines and create two IntSets.

Assume their exist a file called sets1.txt that contains the following:

2 3
1 2

Assume their exist a file called sets2.txt that contains the following:

1 2
1 2

When running the program, the user must specify one of the following set arguments:

union : Perform the union of the two sets in the file and print out the resulting set.
intersect : Perform the intersection of the two sets in the file and print out the resulting set.
diff : Perform the difference of the two sets in the file and print out the resulting set. If the first line of sets1.txt is A and the second line of sets2.txt is B then this flag should compute A - B.
The output must be printed using set notation syntax (i.e., {5,3, ...}). Only for printing, you must print the items in the set in order mainly to make the test cases work. Do not print anything else out to the command line.
if no file or option is given : Print the following usage statement:
```
Usage: problem4  <union | intersect | diff> file
```
Do not print anything else out to the command line.

Sample Runs ($: is just mimicking the command line)

$: go run hw1/problem4 union problem4/sets1.txt
{1, 2, 3}
$: go run hw1/problem4 intersect problem4/sets1.txt
{2}
$: go run hw1/problem4 diff problem4/sets2.txt
{}
$: go run hw1/problem4 diff
Usage: problem4  <union | intersect | diff> file
$: go run hw1/problem4 problem4/sets2.txt
Usage: problem4  <union | intersect | diff> file
$: go run hw1/problem4
Usage: problem4  <union | intersect | diff> file

Assumptions: You can assume that the file given will always be a valid file. You are guaranteed that the set that is given in the test files are actual sets (i.e., you are guaranteed there are no duplicate numbers in a line in the input). You are also guaranteed they will only be integers.

Helpful References:

The tests for this problem is inside the problem4_test.go file. Please see the above section for running tests.

Grading¶

Programming assignments will be graded according to a general rubric. Specifically, we will assign points for completeness, correctness, design, and style. (For more details on the categories, see our Assignment Rubric page.)

The exact weights for each category will vary from one assignment to another. For this assignment, the weights will be:

Completeness: 80%
Correctness: 10%
Design & Style 10%

Obtaining your test score¶

The completeness part of your score will be determined using automated tests. To get your score for the automated tests, simply run the following from the Terminal. (Remember to leave out the $ prompt when you type the command.)

$ cd grader
$ go run hw1/grader hw1

This should print total score after running all test cases inside the individual problems. This printout will not show the tests you failed. You must run the problem’s individual test file to see the failures.

Design, Style and Cleaning up¶

Before you submit your final solution, you should, remove

any Printf statements that you added for debugging purposes and
all in-line comments of the form: “YOUR CODE HERE” and “TODO …”
Think about your function decomposition. No code duplication. This homework assignment is relatively small so this shouldn’t be a major problem but could be in certain problems.

Go does not have a strict style guide. However, use your best judgment from prior programming experience about style. Did you use good variable names? Do you have any lines that are too long, etc.

As you clean up, you should periodically save your file and run your code through the tests to make sure that you have not broken it in the process.

Submission¶

Before submitting, make sure you’ve added, committed, and pushed all your code to GitHub. You must submit your final work through Gradescope (linked from our Canvas site) in the “Homework #1” assignment page via two ways,

Uploading from Github directly (recommended way): You can link your Github account to your Gradescope account and upload the correct repository based on the homework assignment. When you submit your homework, a pop window will appear. Click on “Github” and then “Connect to Github” to connect your Github account to Gradescope. Once you connect (you will only need to do this once), then you can select the repository you wish to upload and the branch (which should always be “main” or “master”) for this course.
Uploading via a Zip file: You can also upload a zip file of the homework directory. Please make sure you upload the entire directory and keep the initial structure the same as the starter code; otherwise, you run the risk of not passing the automated tests.

Note

For either option, you must upload the entire directory structure; otherwise, your automated test grade will not run correctly and you will be penalized if we have to manually run the tests. Going with the first option will do this automatically for you. You can always add additional directories and files (and even files/directories inside the stater directories) but the default directory/file structure must not change.

Depending on the assignment, once you submit your work, an “autograder” will run. This autograder should produce the same test results as when you run the code yourself; if it doesn’t, please let us know so we can look into it. A few other notes:

You are allowed to make as many submissions as you want before the deadline.
Please make sure you have read and understood our Late Submission Policy.
Your completeness score is determined solely based on the automated tests, but we may adjust your score if you attempt to pass tests by rote (e.g., by writing code that hard-codes the expected output for each possible test input).
Gradescope will report the test score it obtains when running your code. If there is a discrepancy between the score you get when running our grader script, and the score reported by Gradescope, please let us know so we can take a look at it.
